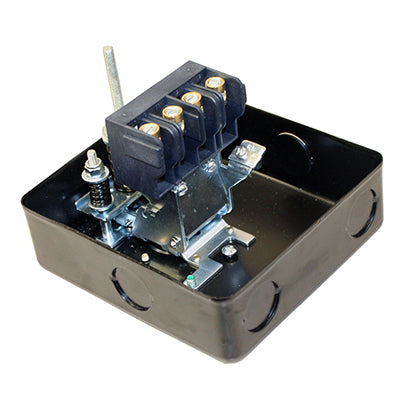

Extra Heavy-Duty Pressure Switch Preset

SKU:

Barcode:

Quality Benefits  - Extra heavy-duty pressure switch in all parts | Merrill - 3lbs. vs Competitor 2lbs. - Switch extra-large case for easy wiring | Merrill - 5.7" x 5.3" vs Competitor 3.7" x 3.4" - Heavy brass wire connections (hold No.4 wire) with set screws inside the brass tube - wires will......Read more

  • $125.00

Preset On - Off
Connection
Other Options
+ -
  • american express
  • apple pay
  • diners club
  • discover
  • facebook pay
  • google pay
  • master
  • paypal
  • venmo
  • visa
Description

Quality Benefits

- Extra heavy-duty pressure switch in all parts | Merrill - 3lbs. vs Competitor 2lbs.

- Switch extra-large case for easy wiring | Merrill - 5.7" x 5.3" vs Competitor 3.7" x 3.4"

- Heavy brass wire connections (hold No.4 wire) with set screws inside the brass tube - wires will not slip off the screw

- 3/4" conduit size knockouts for heavy wire (4 places)

- Adjustment instructions for switch inside top cover

- Contacts open (switch off) at cut-off pressure. Points close (switch on) a cut-in or pressure drop

- Heavy fiberboard bracket for movement of contacts much stronger and heat resistant

- Extra-large silver contact for longer service life

- Captive nut on the switch cover

- 1/4" swivel union so switch case does not need to pivot to install (set screw to stop swivel)

- Raised grounding lug for easy connection - holds two wires

 U.S. Patent # 10,197,051
