Find Your Flow

M-2000 Frost-Proof Yard Hydrant

The Merrill M-2000 Yard Hydrant is the only Merrill hydrant with a non-cast iron head. Made of DuPont's™ Zytel® ST Thermoplastic, the M-2000 offers a more forgiving head solution compared to its cast-iron counterparts. The fiber-reinforced Thermoplastic greatly reduces breakage, eliminates machining, and takes painting and corrosion out of the equation.
• Full Lever Control Placement of handle sets flow control
• 1040 Steel Draw Straps Reduced wear of straps and eliminates side pull on operating rod
• Stainless Steel Operating Rod Adds years to operating life
• Fiber Reinforced Thermoplastic Head greatly reduces breakage of brittle cast iron, eliminates machining, painting, and corrosion. Provides consistent, precise parts and a long life cycle. Made of Zytel® ST (supertough) by DuPont™, one of the "World's Toughest Thermoplastics."
• Nozzle on Head has standard 3/4" hose thread molded on the outside and has 3/8" NPT thread molded into the inside
• Pivot Connector with Two Nuts Easily adjusted for years without the rusted and stuck set screws concern
• No Exposed Threads No exposed steel threads to rust

B-7000 Frost Proof Yard Hydrant

The Merrill B-7000 Frost Proof Yard Hydrant is the only Merrill hydrant the features a pull-down lever to turn on the hydrant. Designed with a auto adjusting plunger and valve body, the B-7000 eliminates the need for manual alterations. The elimination of the packing glad takes the worry of packing glad life out of the equation.
• Heavy Cast Iron Head Time-proven design for years of use
• One Lifting Strap Ribbed design on centered single strap increase strength and eliminates side pull
• No Adjustment Needed Design of plunger and valve body automatically adjusts itself - no field guess work
• No Packing Gland Required No packing gland required - Easy to work on in the field
• Easy Plunger Seal Replacement Only loosen one bolt

E-5000 Frost Proof Yard Hydrant

The Merrill E-5000 Yard Hydrant is designed with pivot connector in place of commonly used set screws. A pivot connector lengthens the adjustability life of the hydrant because it will not rust into place like a set screw. The E-5000 comes in two packing gland options; standard and metal. The metal packing gland offers an extremely quick removal time, dramatically shortening the time required to check or replace the hydrant's plunger.
• Full Lever Control Placement of handle sets flow control
• 1040 Steel Draw Straps Reduced wear of straps and eliminates side pull on operating rod
• Operating Rod Smooth galvanized surface maximizing the life of the packing seal
• Heavy-Duty Solid Hose Adapter Threaded for standard 3/4" hose coupling
• Pivot Connector Easily adjusted for years without the rusted and stuck set screw concern

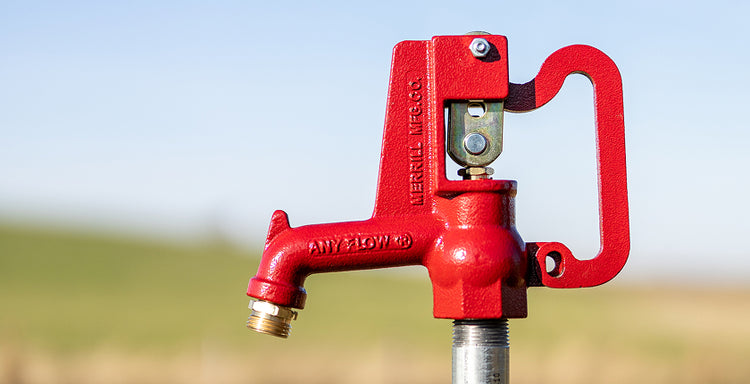

AnyFlow Frost Proof Yard Hydrant

The Merrill Any Flow® Yard Hydrant gives year-round water service to customers in all weather conditions. The unique design of the Any Flow's plunger assembly increases the plunger's life expectancy by 200% over others in the industry. The use of a pivot connector and nuts enables easy adjustments for years as opposed to set screws that quickly rust into place.
• The Original Design- time trusted and refined over the last 75 years.
• Designed with swivel parts The Any Flow® can have its internal parts removed and replaced all without a need to dig up the hydrant.
• Drain Hole ensures that water drains from the standpipe allowing the Any Flow to be your year-round water solution in all climates.
• Full lever Control This allows the Any Flow® to run at a trickle to full flow and everywhere in between by just moving the handle.

C-1000 Frost Proof Yard Hydrant

The Merrill C-1000 Yard Hydrant gives year-round water service to customers in all climates at an economical price point. The C-1000 utilizes lever control flow allowing users to change the water flow from a slow trickle to a full rush with the simple move of the handle.
• A pivot connector with two nuts is used in place of set screws to ensure adjustments can be made years later, where typical set screws rust into place.
• Self-lubricating, one-piece plunger diminishes concern over sticking and bonding.
• Double bypass valve body gives users a high-flow option for an affordable hydrant.
• Designed with swivel parts, users can remove and replace the C-1000's internal parts without ever digging up the hydrant.
• Created with cold weather in mind, the incorporated drain hole allows water to drain out creating confidence in year-round use in all climates.

R-6000 Frost Proof Yard Hydrant

The Merrill R-6000 Yard Hydrant brings a different design to the Merrill line of frost-proof yard hydrants. Unlike Merrill's typical over-the-head handle design, the R-6000 features a lower placement for the on/off handle. Similar to other Merrill designs, adjustment set screws have been eliminated and replaced with nuts to eliminate the loss of adjustments due to rusting.
• Unique head design allows for the removal of the packing gland, operating rod, and plunger all without having to remove the hydrant head.
• Head design also enables quick and easy replacements for users if needed.
• Merrill's one-piece, self-lubricating plunger allowing for a secured seal and extended life expectancy.
• Incorporated drain hole allows water to drain out creating confidence in year-round use in all climates.
• Packing Gland with Teflon® Packing- Non-corrosive for extended use

Hidedrant - The Sanitary Yard Hydrant

The Merrill Hide-Drant is a sanitary yard hydrant that has been approved as such in even the most restrictive states like; Illinois, Indiana, Michigan, Ohio, and Wisconsin. Available in stainless or PVC and with a curved or straight neck, Merrill provides a sanitary hydrant option for you.
• Hide-Drant's standpipe can be removed with three counter-clockwise turns, then drain the standpipe of water and your Hide-Drant is frost-proof for freezing temps.
• Stop valve at the bottom of the Hide-Drant is automatically opened when the standpipe is reinstalled.
• Seals between the stop valve and the standpipe are water-tight before the valve is reopened.
• Outlet can be set to any direction by simply tightening the standpipe the three turns from where you want the outlet to be.

H-3000 Heated Yard Hydrant

The Any Temp/H-3000 series water riser/heated hydrant gives year-round water service with the use of a self-regulating heat cable or by draining itself below the frost line when shut off. The heated hydrant is a simple unit designed to provide frostproof water service. It completes the sanitary installation from buried water line to above-ground water connection, or supply pipe with shut-off valve, needed for each mobile of manufactured home.
• Water connectors shall be Merrill Any Temp heated hydrant with 5 watts/ft
• Self-regulating heating cable, Ethafoam insulation simple sanitary straight-line design.
• Locks Open or Closed- Turn clockwise to lock hydrant on or off and prevent unwanted use
• Plunger - Four ethylene propylene quad ring seals which never come out of adjustment, have longer life than O-Rings and withstand higher pressures
• Extra Heavy Steel Collar- Hydrant will handle years of mowing and other outdoor abuse

Y-Series Self-Closing Yard Hydrants

The Merrill Y1 & Y2 self-closing Frost Proof Yard Hydrants automatically shut off to keep wasted water to a minimum. A stainless steel spring and water pressure shut the hydrant off when a user is not operating the hydrant, making the Y1 & Y2 perfect options for public use.
• Locking feature to lock the hydrant in the on position if needed, and off for when it should not be used.
• Designed with swivel parts, allowing for the hydrant insides to be removed and/or replaced without having to dig the hydrant up.
• Water Usage- Maintain control over water usage when others may be using the hydrant!
• Flow Control Valve Available- Ordered separately, the Flow Control Valve allows for flow rate to be regulated
• No-Lead Brass Hose Adapter- Heavy-duty hose adapter for standard 3/4" hose coupling
