Drop Pipe Coupling Installation Guide

About the Product

PVC & Stainless Models

A strong connection starts with the right installation.

Merrill drop pipe couplings connect threaded drop pipe in submersible pump systems. They help create a strong, tight connection that is easy to install when the pipe size, sealant, and threads are matched correctly.

Buy Once. Install Once.

Threaded drop pipe and PVC drop pipe coupling

Before You Start

  • Turn off power to the pump.
  • Make sure the pipe size and coupling match.
  • Clean the threads and have thread sealant ready.

Four-Step Installation

  1. Check the Parts

    Make sure the coupling and both pipe ends are the same size. Check for dirt, cracks, or damaged threads.

  2. Apply Thread Sealant

    Apply approved thread sealant or thread tape to the male pipe threads. Do not use too much.

  3. Thread the Coupling On

    Start by hand so the threads go on straight. Tighten until snug and secure. Do not overtighten.

  4. Finish and Test

    Support the pipe properly. Check that the connection is tight before lowering or running the system.

Models Covered

PVC

PDC = Schedule 80
PDCH = Schedule 120

PVC sizes shown in Merrill specs: 1", 1-1/4", 1-1/2", and 2", depending on model.

View PVC Couplings →

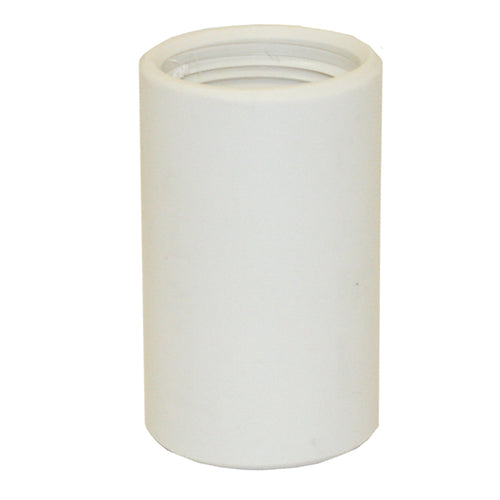

Merrill PVC drop pipe coupling

Stainless Steel

SSDC = Stainless Steel
SSDCHD = Extra Heavy Stainless

Use the correct model for the pipe size and application.

View Stainless Couplings →

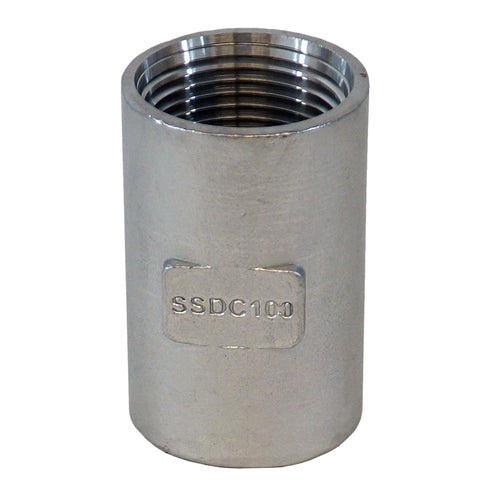

Merrill stainless steel drop pipe coupling
