Pitless Units 101: Why Proper Installation Matters (Guide for Drillers & Installers)

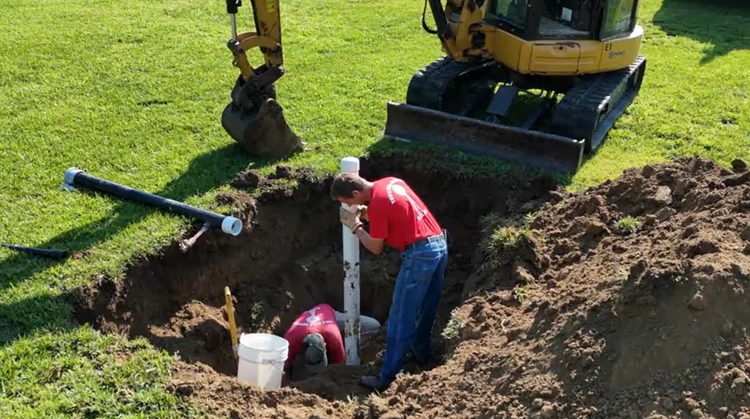

A pitless unit isn’t just another component in a pumping system — it’s the foundation of a sanitary, frost-proof, serviceable well installation. And when it’s installed correctly, it protects groundwater, avoids contamination pathways, prevents freeze damage, and ensures the system can be serviced without excavation. This guide breaks down what pitless units do, why installation technique matters, and how Merrill Manufacturing’s certified designs support long-term system performance. 1. What a Pitless Unit Actually Does (and Why It Exists) According to the Water Systems Handbook, pitless equipment: Provides sanitary connections and prevents contaminants from entering near-surface or surface openings into the well or water supply. Allows the well casing to terminate above ground, with a permanently buried discharge connection below frost line. Protects water from temperature extremes and provides convenient access to system components without excavation. In short:Pitless units exist so wells remain sanitary, frost-proof, and maintainable — without pits, pump houses, contamination risks, or extra on site work to service a well. Below cross section of water well system- 1. Pitless Unit 2. Pitless Adapter vs. Pitless Unit — What’s the Difference? Pitless Adapters Below-ground devices that connect through the casing below frost line. They are inserted through a cut hole and include inner/outer components that seal together. Pitless Units A full factory-assembled system installed on top of the casing. The installer cuts the casing to the required bury depth, removes internal parts, mounts the unit, and lowers the components into position. These units come pressure-tested from the factory and are designed to be fully watertight when installed correctly. Quick Summary Feature Pitless Adapter Pitless Unit Install method Cut-in through casing wall Installed on top of casing Access Partial Full-diameter access to well Sanitary sealing Good Best (certified watertight) Factory testing Not possible- on site intall 100% pressure tested (Merrill) Best use Lower-cost jobs Long-term reliability, deep wells, system longevity 3. Why Proper Pitless Installation Is Critical A. Sanitary Protection A pitless unit is a key of a sanitary well construction method. It stops contaminated surface or near-surface water from entering the well. A poor pitless installation = a direct pathway for contamination. B. Freeze Protection The discharge connection must be below the frost line. Pitless units with pressure tested discharge allow the well to be completed above grade while still keeping the buried plumbing protected from freezing temperatures. If the bury depth is wrong — frost damage is highly likely. C. Pressure Integrity Handbook guidelines describe pressure integrity as essential for maintaining sanitation in pitless systems, especially in submersible pump installations. If seals, gaskets, or O-rings are not properly engaged → the system can leak and compromise sanitary protection. D. Serviceability Over the Well’s Lifetime Pitless construction allows the drop pipe and pumping equipment to be removed from above ground for service. Incorrect installation can prevent disengagement, requiring excavation — or risking dropping equipment down the well. 4. Merrill’s Pitless Units: What the Catalog Confirms From the Merrill Manufacturing catalog: Certified Watertight under ASSE 1093, PAS-97 and state well codes. 100% pressure-tested at factory to ensure proper sealing to discharge. Positive mechanical seal using stainless steel adjusting nut — easy to operate and rust-free. Full diameter access with no obstructions for service work. Large spud gasket / thick O-ring seal ensures a watertight seal inside casing and around discharge. Heavy-duty support plate holds more weight and reduces risk of losing equipment down the well. 5. Essential Steps for Installing a Pitless Unit Correctly (Aligned with Water Systems Handbook installation guidance) 1. Determine correct casing diameter and bury depth Installer must specify these before installation begins. 2. Cut casing at proper depth Casing is cut off at bury depth — critical for frost-line placement. 3. Mount the pitless unit to casing By threading, welding, or compression gasketing depending on contractor preference. 4. Connect discharge Discharge piping attaches before inserting internal components. 5. Engage seal inside the well Internal components are lowered and locked into sealing position.Merrill’s adjusting nut then ensures a positive mechanical seal. 6. Confirm watertight integrity Merrill already pressure-tests units at the factory, but installers should ensure: O-rings are clean and properly seated Spud gasket is correctly aligned for those models No distortion of well casing Proper torque on fasteners 6. When Installers Get It Wrong — Common Failure Points Based strictly on the failure modes implied in your sources: Insufficient seal engagement → loss of pressure, sanitation risk. Improper casing cut height → freeze problems. Misalignment of spud gasket → leaks and corrosion issues. Using wrong type of coupling → poor casing connection and compromised watertight seal. A properly installed pitless unit removes these risks and ensures decades of reliability. 7. Why Drillers & Installers Prefer Merrill Pitless Units You can confidently state this using catalog facts: They are certified to current ASSE and PAS standards for sanitation and watertight performance. They provide full access for pump service without obstruction. Unit seal ports not damaged when service the well.   They include heavy-duty components such as stronger support bars and stainless steel fittings. They undergo 100% factory pressure testing, something not guaranteed with many other brands.   Final Takeaway A pitless unit is the best longterm and easiest to intall. Units installed correctly — following the requirements laid out in the Water Systems Handbook and paired with Merrill’s certified, pressure-tested designs — you get: Superior sanitation Reliable freeze protection Long-term system pressure integrity Full-service accessibility - safe from damage during service work. Decades of trouble-free operation

A water system rarely fails all at once. It usually shows symptoms — pressure fluctuations, air in lines, freeze problems, inconsistent flow, or unexpected cycling. The Water Systems Handbook (13th Edition) emphasizes diagnosing failures by checking each component in the hydraulic chain: The outlet device (hydrant) The pressure switch or motor control The back flow components (check valves) The wellhead sealing (well caps, vents, gaskets)(Book I & II – System Troubleshooting & Construction Principles) This guide helps wholesalers and technicians recognize where failures originate and which Merrill components address them. 1. Diagnosing Hydrant Problems - Yard Hydrants Collection Hydrants are one of the most visible failure points because they’re the customer-facing part of the system. But hydrant issues are often symptoms, not the root cause. Common Symptoms (Handbook Principles) Riser freezing Incomplete drain-back Hard operation / stuck handle Weak or inconsistent flow Water leaking from weep hole or surface Likely Causes These issues typically relate to: Not adequate drainage or no gravel or clay soil Drain port obstruction or debris in drain from inside valve body Packing guard handle rod valve body has debris washed into it. or lever bolt thick lever is overly right Debris in waterline or inlet to valve body, or could be hydrant is connected to well prior to tank and pressure switch. Worn internal parts (plunger, packing replaced around handle rod ) How Merrill Hydrants Address Failures - Yard Hydrants Collection Premium Hydrants (ANY FLOW®, C-1000, R-6000) use robust valve mechanisms that maintain alignment and provide smoother operation — reducing sticking and incomplete closure. Much longer operation life many on-off cycles each day. Economy Hydrants (M-2000, E-5000, B-7000) provide reliable drain-back when installed correctly, preventing freeze failures. Longer operation life than low cost import hydrants and made in Iowa. Specialty Hydrants (HIDE-DRANT, Y1, Y2, ANY TEMP) solve sanitary no drain back, public-use, or heated always on operation problems where standard hydrants cannot fully answer the application. Key takeaway:If a hydrant freezes or drains poorly, the cause is usually installation or environment, not the hydrant itself. Merrill hydrant sleeve can fix most of the problems, and answer to cast hydrant in concrete. 2. Diagnosing Check Valve Problems - Check Valves Collection The Handbook is clear: even minor check valve issues can destabilize the entire system.(Book II – Pumping Systems & Check Valve Behavior) Common Field Symptoms Pump short-cycling Pressure dropping when no water is used Noisy “chatter” in piping Water hammer on shutoff Likely Causes Worn or debris-damaged poppet sealls Too few check valves Corrosion or scale buildup How Merrill Check Valves Solve These Issues - Check Valves Collection (Catalog pp. 151–162) Merrill NL / Standard Check Valves → Ensure proper sealing to prevent backflow and cycling. Stainless Steel Valves → Greatly reduce internal corrosion that along with no-spin poppet design leads to valve sticking, and no-spin poppet. Variable Flow Check Valve (VFC) → Allows installers to greatly reduce pressure loss maintain consistent pressure.  water hammer and chatter. Key takeaway:Most pressure problems trace back to one thing: the need for well screens or more check valves are needed. 3. Diagnosing Pitless Unit Problems-  Pitless Units Collection The Water Systems Handbook emphasizes the role of pitless units in maintaining sanitary seals, stable pressure, and freeze protection.(Book I – Well Construction & Pitless Systems) Common Field Symptoms Slow pressure loss over time Air pockets in lines Seasonal freeze-ups Reduced flow despite normal pump operation Water leaking near well casing Likely Causes Worn or damaged O-rings / gaskets Debris preventing full seating of check valves Installation too shallow Loose cracked granted or corroded fittings How Merrill Pitless Units Prevent Failures - Pitless Units Collection Pressure-tested internal elbow and o-ring seal High-quality spud gaskets or o-ring depending on model Stainless components for long-term service life Smooth internal pathways to reduce turbulence and flow loss Key takeaway:Pitless failures tend to be sealing problems — Merrill’s design minimizes these when installed correctly and stainless steel used for components. 4. Diagnosing Well Cap, Vent, and Seal Problems - Well Caps, Well Seals Collection The Handbook stresses wellhead integrity as essential for system performance and contamination prevention.(Book I – Sanitary Well Construction) Common Field Symptoms Insects, debris, or vermin inside well casing Freeze-related cracks around wellhead Likely Causes Loose or damaged well caps Missing or torn vent screens Improper venting or no venting Gaskets not seated correctly or cracked How Merrill Well Caps Prevent These Issues - Well Caps, Well Seals Collection Weather-resistant construction certified watertight by third party Proper venting options to prevent vermin and contamination Secure gaskets and fasteners designed for tight sanitary seals and serviceability Options for varying casing diameters and material types along with grounding option Key takeaway:A well cap is not decorative — it’s a primary defense against contamination, weather, and vermin that can destabilize the system or at least makes it difficult to service. 5. Technician Field Diagnostic Matrix A simple list wholesalers can share with contractors:  Symptom Likely Component Underlying Cause Merrill Solution Pump cycling repeatedly Pressure tank Waterlogged tank diagram failed Merrill auto shut off pressure switch  Hydrant Riser freezing Yard Hydrant Improper drain, shallow bury, obstructed drain hole Premium/Economy hydrant with correct installation or add hydrant sleeve Slow pressure loss Check valve Worn valve seal debris in valve Merrill pitless replacement seals Air in lines Check valve / fittings Air intrusion or failing valve Merrill check valve + proper fittings add turque arrestor above pump Hard hydrant operation Hydrant internals Debris in hydrant flush out replace plunger Remove head flush out hydrant+ Merrill hydrant repair kit 6. How Wholesalers Can Help Installers to Prevent Failures Wholesalers can reduce contractor callbacks by asking: ✔ “Is the hydrant drain gravel clean adequate quantity or add hydrant sleeve?” ✔ “Are check valves spaced according to WSC Handbook principles?” ✔ “Is the wellhead fully sealed with a proper sanitary well cap that is PAS97 certified?” These questions help turn wholesalers into trusted technical advisors. Conclusion Water system failures almost always come down to component selection, thread sealing, or installation practices. With the engineering guidance of the Water Systems Handbook and the product reliability outlined in the Merrill Catalog, contractors can accurately diagnose problems — and fix them with confidence. Merrill’s yard hydrants, check valves, pitless units or adapters, and well caps are built to withstand real-world conditions when installed following these principles. By understanding the failure causes and matching them to the right component, wholesalers and installers protect system performance, reduce downtime, and deliver long-lasting results. Resources to Learn more: 1) YouTube Channel 2) Merrill Catalog 3) Water Systems Handbook (13th Edition)

Well caps, seals, and vents may be small components, but they play a critical role in protecting water well systems from contamination, debris, insects, and pressure issues. Properly selected and installed, these components ensure long-term water quality and system reliability. Industry standards emphasize that every well must be securely sealed above ground, properly vented, and protected with sanitary components to prevent infiltration and maintain performance. Upgrading to modern sanitary well caps and seals is a simple yet impactful way to improve safety and system integrity.
